Features:

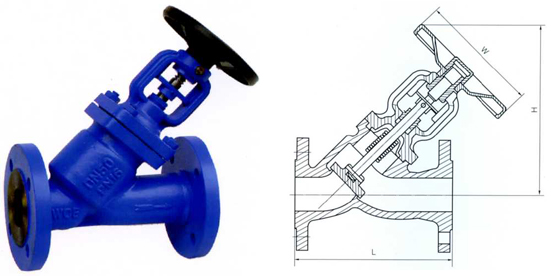

Y Type Bellows Globe Valve
Technical specificastion
|
Structural Formation |
BB-BG-OS & Y |
|
Driving Manner |
Hand-Operated |
|
Electric-Actuated |
|
Design Standard |
DIN3356 |
|
Face to Face |
DIN3202 |
|
Flange Ends |
DIN2543-2545 |
|
Test & Inspection |
DIN3230 |
Products performance specification
|
Nominal Pressure
(Mpa) |
Shell Test(Mpa) |
Sealing Test(Mpa) |
Suitable Temp(oC) |
Suitable Medium |
|
1.6 |
2.4 |
1.76 |
< 350 oC |
Water Oil & Gas |
|
2.5 |
3.75 |
2.75 |
|
4.0 |
6.0 |
4.4 |
|
6.4 |
9.6 |
7.04 |
|
NO. |
Part name |
Material |
|
1 |
Body |
GS-C25, 1.7363, 1.4308, 1.4408, 1.4306, 1.4301 |
|
2 |
Disc |
F6a F22 F304 F316 F321 F304L F316L |
|
3 |
Pin |
F6a F22 F304 F316 F321 F304L F316L |
|
4 |
Stem |
F6a F22 F304 F316 F321 F304L F316L |
|
5 |
Bellow assemble |
1Cr18Ni9Ti, 304, 316 |
|
6 |
Bonnet |
GS-C25, 1.7363, 1.4308, 1.4408, 1.4306, 1.4301 |
|
7 |
Packing |
Flexible Graphite PTFE |
|
8 |
Gland |
GS-C25, 1.7363, 1.4308, 1.4408, 1.4306, 1.4301 |
|
9 |
Handwheel |
ASTM A536 Gr.60-40-18 A216-WCB |
|
10 |
Yoke nut |
ZQA19-4 |
|
11 |
Bolt |
ASTM A193-B7 A193-B8 A193-B8M |
|
12 |
Nut |
ASTM A194-2H A194-8 A194-8M |
|
13 |
Gasket |
Flexible Graphite+stainless steel, PTFE |
Main dimension and weight
|
Pressure
(Mpa) |
PN 1.6 Mpa |
|
Size |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
|
L |
130 |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
850 |
980 |
|
H |
195 |
195 |
200 |
200 |
230 |
235 |
260 |
275 |
350 |
385 |
445 |
605 |
730 |
805 |
880 |
|
W |
120 |
140 |
140 |
180 |
200 |
220 |
260 |
280 |
300 |
340 |
400 |
450 |
450 |
500 |
500 |
|
Weight(kg) |
4 |
4.5 |
5 |
7 |
9 |
12.5 |
18 |
23 |
41 |
54 |
90 |
160 |
260 |
410 |
610 |
|
Pressure
(Mpa) |
PN 2.5Mpa |
|
Size |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
|
L |
130 |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
850 |
980 |
|
H |
195 |
195 |
200 |
200 |
230 |
235 |
260 |
275 |
350 |
385 |
445 |
605 |
730 |
805 |
880 |
|
W |
120 |
140 |
140 |
180 |
200 |
220 |
260 |
280 |
300 |
340 |
400 |
450 |
450 |
500 |
500 |
|
Weight(kg) |
4 |
4.5 |
5 |
7.5 |
9.5 |
13 |
19 |
24 |
43 |
57 |
95 |
168 |
300 |
510 |
680 |
|
Pressure
(Mpa) |
PN 4.0Mpa |
|
Size |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
|
L |
130 |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
850 |
980 |
|
H |
195 |
195 |
200 |
200 |
230 |
235 |
260 |
275 |
350 |
385 |
445 |
605 |
730 |
805 |
880 |
|
W |
120 |
140 |
140 |
180 |
200 |
220 |
260 |
280 |
300 |
340 |
400 |
450 |
450 |
500 |
500 |
|
Weight(kg) |
4 |
4.5 |
5 |
8 |
10 |
13.5 |
20 |
25 |
45 |
60 |
98 |
171 |
340 |
580 |
780 |
|
 | |
|
|
